This section describes how to setup an ecobee thermostat to control a standalone dehumidifier or a forced air furnace/air-handler that supports a ‘Dehum’ mode.

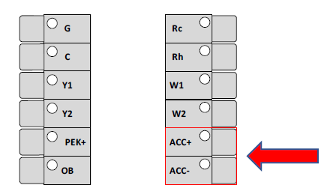

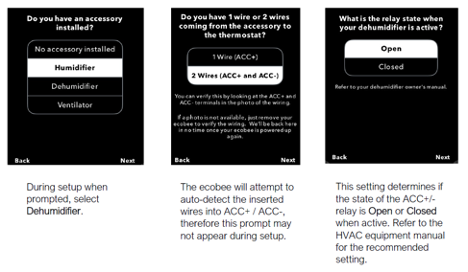

Once the ecobee has been wired to control the HVAC system and dehumidification system using the ACC+/ACC- terminals it will require correct setup to determine how you want to enable Dehumidification control. During the first-run setup they are a few key settings to ensure Dehumidification is part of the HVAC control algorithms.

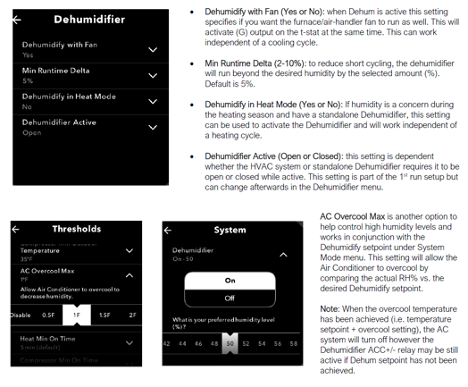

After the ecobee has been configured there are a few specific settings that allow you to determine when the Dehumidifier becomes active.
To access these settings, on the device select MENU > SETTINGS > INSTALLATION SETTING > EQUIPMENT > DEHUMIDIFIER.
Disclaimer: The technical statements, information and recommendations contained herein are believed to be accurate as of the date hereof, but Mingledorff’s does not make representations or warranties, express or implied, as to its accuracy, its completeness, or the results to be obtained. The information is being provided for informational purposes only and is intended for use by persons having adequate skill and expertise regarding the proper selection, use and application of the products and recommendations and at their own risk and discretion.
