How to Read a Ladder Diagram

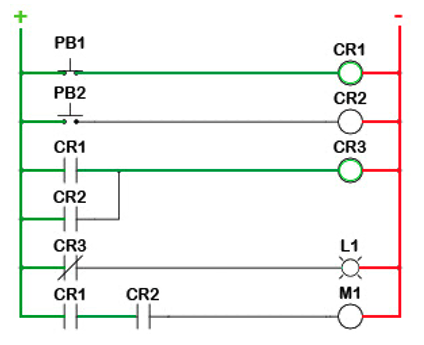

Ladder diagrams, also known as ladder logic, are a type of electrical notation that illustrates how relays and electromechanical switches are connected.

Read from left to right, top to bottom

  • The power flows from left to right across each rung, and the diagram is read from top to bottom.

Identify the rails and rungs

  • The vertical lines are called rails, and the horizontal lines are called rungs. The left rail is usually the power source, and the right rail is the ground or neutral connection.

Understand the rungs

  • Each rung represents a single operation or condition in the control process. The logic symbols on the rung, along with the state of the inputs, determine the output state.

Analyze the input devices

  • Input devices can be connected in parallel or series. In a series connection, all devices must be activated, while in a parallel connection, only one device needs to be activated.

Look for numbers and letters

  • Wires in control systems are often marked with numbers and/or letters for identification. All points that are electrically common must have the same label.

Use a cross-reference system

  • The rungs are usually numbered on the left side of the rail, and the right side of the rail references the contacts associated with the coil.

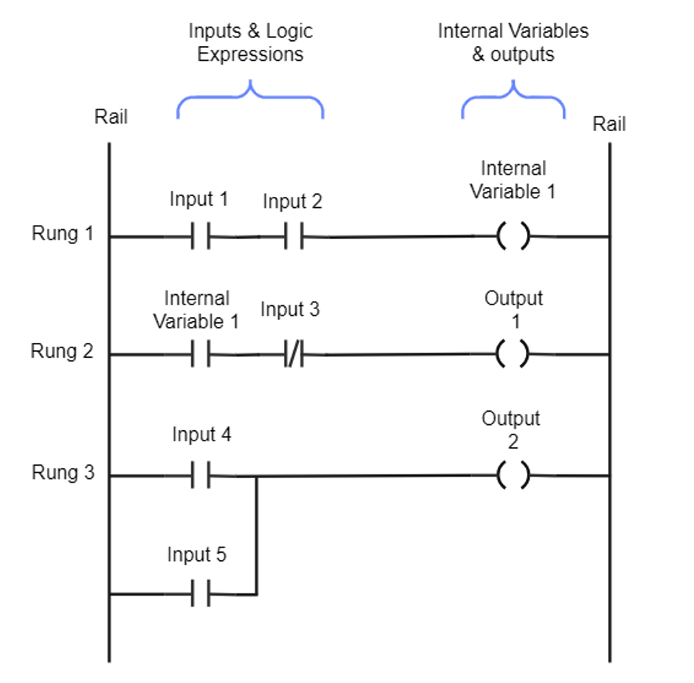

Understanding Rungs and Rails

In a ladder logic diagram, the vertical lines on either side are called rails, while the horizontal lines connecting the rails are called rungs. The left rail is typically associated with the power source, while the right rail represents the ground or neutral connection. The rungs contain the ladder logic symbols that define the system’s control logic. Each rung represents a single operation or condition in the control process. The logic flows from left to right, with the output state determined by the state of the inputs and the logic symbols on the rung.

Interpreting Symbol Arrangements

The arrangement of ladder logic symbols on a rung determines the function and behavior of that rung within the control system. One typical arrangement is the series connection of  NO contacts. In this configuration, all the contacts must be closed (i.e., their associated conditions must be true) to energize the output coil. This arrangement represents a logical AND operation, as all the input conditions must be met for the output to be activated.

Another typical arrangement is the parallel connection of  NO contacts. In this configuration, the output coil will be energized if any contacts are closed (i.e., their associated conditions are true). This arrangement represents a logical OR operation, as any of the input conditions being met will activate the output. In more complex ladder logic diagrams, combinations of series and parallel connections can be used to create intricate control logic.
