Along with new refrigerant for 2025, we’re also seeing new components for safety to be compatible with new Federal guidelines.
Have you ever seen a stuck TXV?
Carrier typically uses hard shutoff valves on their equipment. A hard shutoff TXV means that when the unit turns off and the system pressures equalize, the TXV needle will fully close.
Where would you see stuck TXVs? / What are the key indicators?
So, if you have a stuck TXV, what can you do to assist this issue? Do a TXV Ice Bath.
After charge is confirmed/verified/ corrected (by subcool) and airflow is known to be good.
Allow the unit to run nonstop for a minimum of 10 minutes. Do not turn the system off at all for these tests.

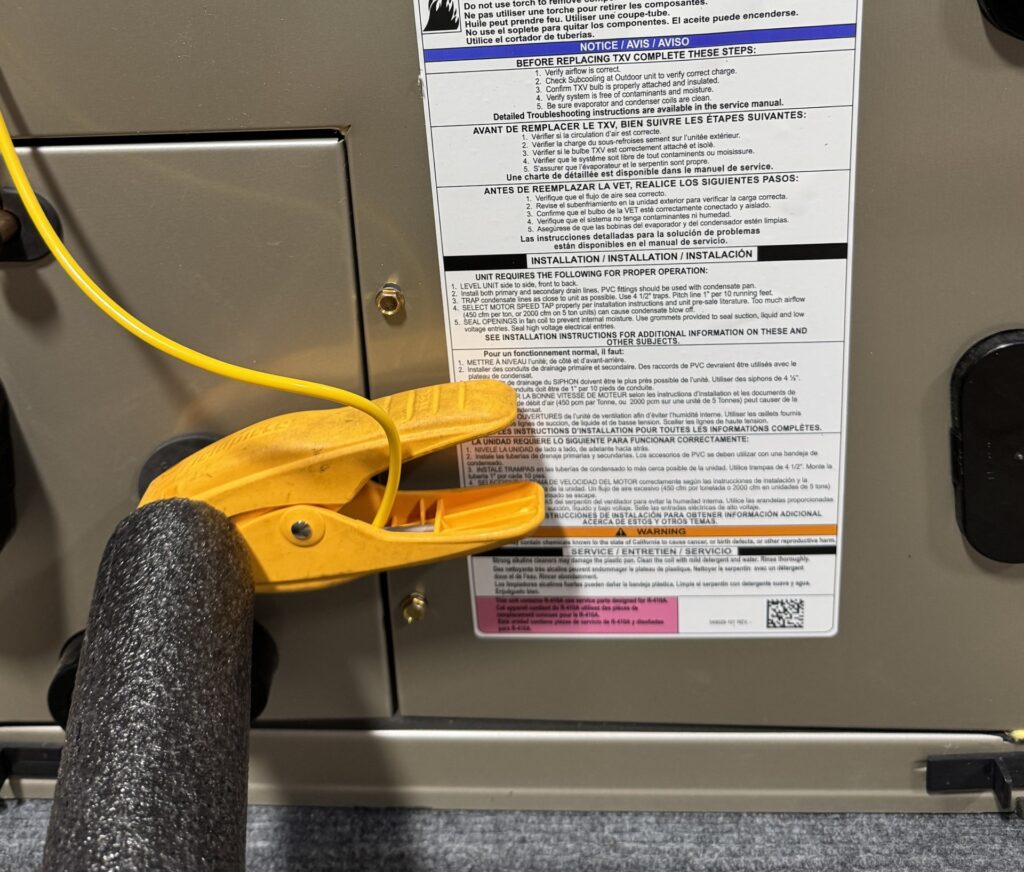

Step One: Record the suction pipe temperature at the indoor unit.

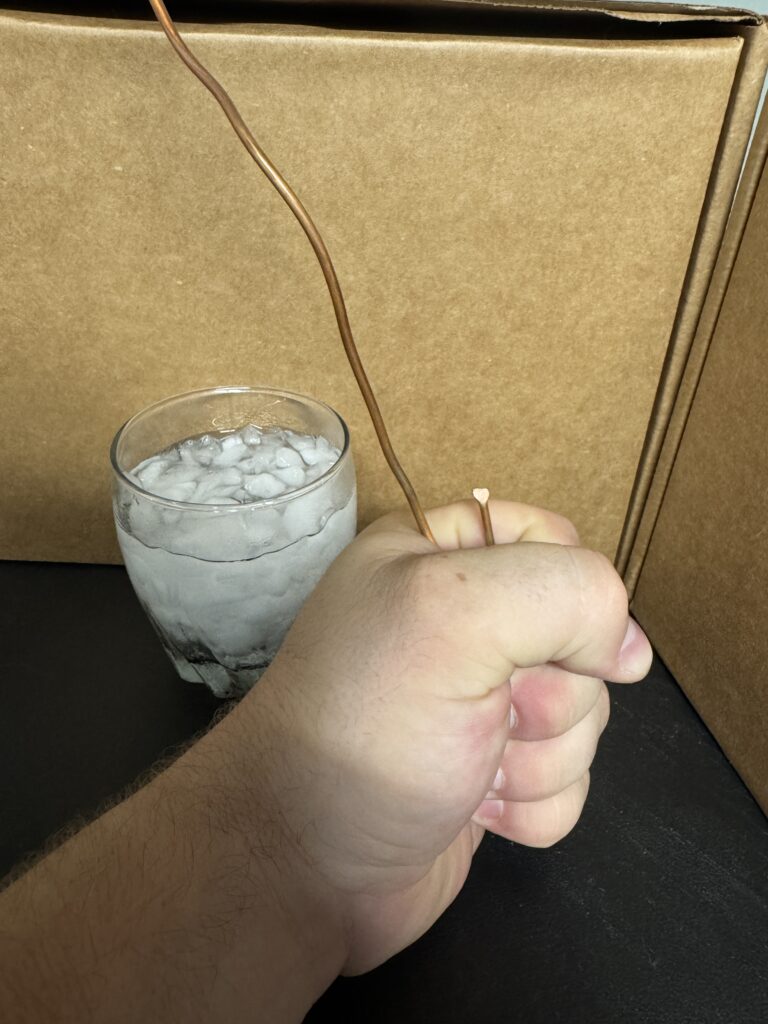

Step Two: Remove the TXV bulb from the suction line, hold it in your hand and warm it by rubbing it with your thumb, do not use a lighter.
Step Three: After 2 minutes of holding the bulb in your hand, record the suction pipe temperature again.

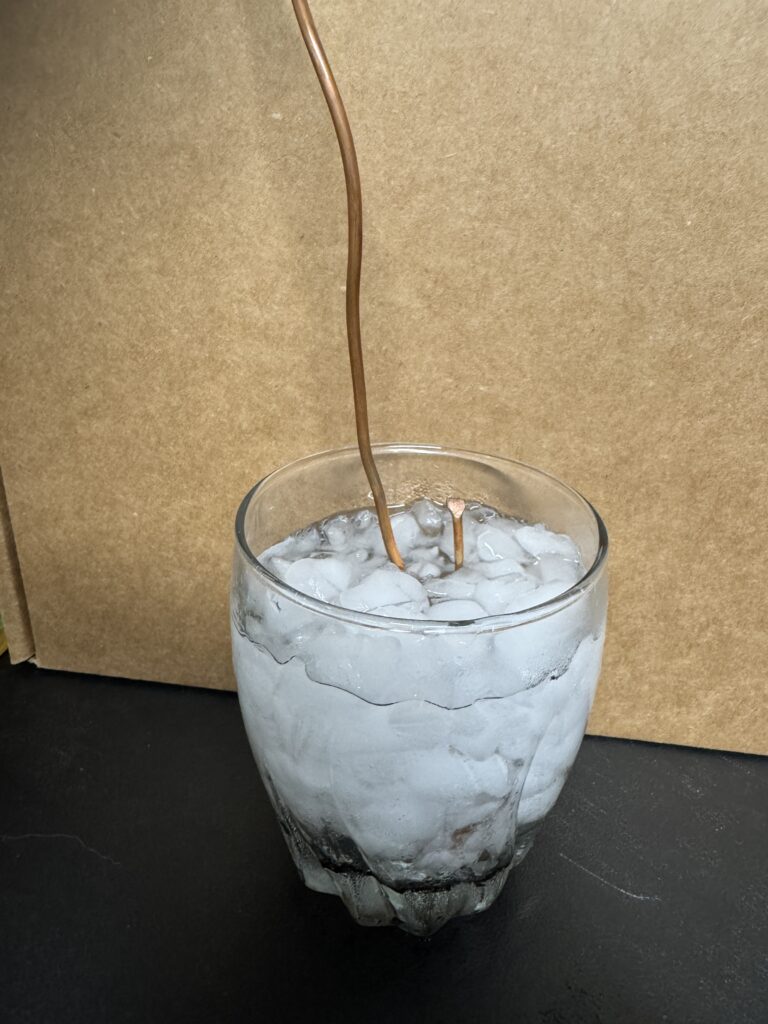

Step Four: Take a cup of ice, add just enough water to cover the ice, then put the sensing bulb into the ice water.
Step five: After 2 minutes in the ice, record the suction pipe temperature again.
Step six: Remove the sensing bulb from the ice water, then reattach it to the suction pipe.
Step 7: After 2 minutes of being reapplied to the suction pipe, record the suction pipe again.
Note: if you feel the need, repeat the steps as many times as you like, but typically only one time is necessary.
When done, you should have written down or recorded 4 suction pipe temperature readings. Review the before and after results to determine if the valve is still stuck or if it is now functioning.
Normal operating TXVs should have a very noticeable temperature swing (typically 10F or more) on the suction pipe when changing from ice to hand or vice versa.
If you correct a TXV sticking one time, it is all good and should be free and clear of issues. However, if you catch it sticking again, it is recommended to schedule a replacement. A repeating issue of sticking TXV could eventually lead to a premature compressor failure.
